Audit log

An ordered, append-only record of who did what, to whom, and when. It is not the same thing as the certificate history: this is the administrative stream – logins, approvals, denials, containment actions, and privileged views.

Two sinks, and they are not equals

Every event goes to both:

• The shipped log is the archive. A dedicated type=audit destination emits one JSON line per event, unconditionally, for an external log system to ship, retain, search and analyse. Real audit retention happens there.
• The database table is a bounded cache. It exists only to serve the web UI’s recent-history views, so it is pruned on a schedule and is deliberately not searchable beyond its four indexed columns: the actor, the target, the action and the observed source address.

The consequence to hold onto: the log emit is unconditional because the table copy is disposable. A deployment that configures no audit log destination loses the archive, not the audit trail’s correctness – but it should configure one.

Unconditional means unconditional: audit events are emitted at INFO, and the shipped logging.level is WARN, so the audit destination is held at an INFO floor when it has neither a filename nor a level of its own. Without that floor an unconfigured deployment would discard every event rather than merely fail to archive it. Setting audit.logging.level overrides the floor, which is the point – turning the trail down is an operator’s call to make deliberately, not one to arrive at by leaving a block empty.

audit:
  retention: 1440h        # 60 days in the table; zero disables age pruning
  max_rows: 1000000       # safety valve behind retention; zero disables it
  sweep_interval: 1h      # how often the retention sweep runs
  logging:
    filename: /var/log/ssoossh/audit.log
    maxsize: 100          # rotation, same keys as logging.* everywhere else
    maxbackups: 30
    log_json: true

Key	Default	Notes
audit.retention	1440h	how long an event stays in the table. Zero disables age-based pruning, leaving max_rows as the only bound
audit.max_rows	1000000	the same sweep deletes oldest-first past the cap, whatever the action. Deliberately high: it bounds pathology, not ordinary volume. Zero disables it
audit.sweep_interval	1h	pruning is not urgent, so this is measured in hours
audit.logging.*	–	the durable export. log_json defaults to true here

Leave audit.logging.filename unset and audit records still reach the general log; setting it splits them into their own rotating file.

retention bounds the UI’s history, not the deployment’s. A short window here loses nothing that matters, because the shipped log is the archive.

One feature does read the table back. When the directory sync disables someone, it decides whether to email them as an admin from their latest auth.login row in the last 60 days. A retention below 60 days, or a max_rows cap that has trimmed those logins, shortens that window: an admin whose last login the table no longer holds is not emailed. The sync logs the window it actually had (effective_window) whenever it is under 60 days.

Unauthenticated events and the row cap

Most events need a signed-in person or the server itself to happen. cert.request_refused_network does not: anyone who can reach the server from a refused network can raise one with a single unauthenticated request.

The sweep still treats these rows like any other: over max_rows, it deletes the oldest rows first whatever their action, so the table always holds one unbroken window of time. A large enough burst of refusals can therefore push the oldest approvals, disables and logins out of the table, and so out of the web UI’s history. The shipped log keeps every line regardless; only the table copy is trimmed.

The cap is a backstop, not a limit on the requests, and the table is not the archive. Keep refused networks out at the firewall where you can, ship the audit log to your log platform (Splunk or similar) so nothing depends on the table copy, and for an internet-facing deployment keep http.rate_limit on (it is on by default; zero turns it off) and leave http.cert_request_rate_limit in place, so one address cannot write refusals as fast as it can send.

An audit row references nothing that can change

An entry must read the same in five years as it did the day it was written. A foreign key breaks that: a rename changes what the entry appears to say, and a deleted row makes it say nothing. So the payload carries literal snapshots – the actor’s subject, username and groups as they were at event time, and the target’s identity likewise – and the row joins to nothing.

The actor_user_id and target_user_id columns exist solely so the UI can ask “everything this account did” and “everything done to this account” without a JSON scan. They are indexed grouping keys, never foreign keys and never authoritative. If a user row is later deleted or renamed the timeline still reads correctly from the payloads; the column merely stops matching.

The action column follows the same rule. It copies the payload’s action so a question about one action (“each user’s latest auth.login”) reads an index instead of the JSON. The recorder writes the column and the payload from the same event, so they agree, and the payload stays the record.

So does the source_ip column, which backs the feed’s address filter. It copies the payload’s detail.source_ip, in canonical form (an IPv4-mapped IPv6 address is stored as plain IPv4), and is empty for an event with no source. See Source addresses for which address that is.

One row serves both timelines. When a SOC analyst disables alice, the analyst’s history shows the disable and alice’s page shows who did it and why, from the same event.

Mutations and their audit rows commit together

A state change appends its audit row in the same transaction, so a disable without its audit row is unrepresentable. The in-process event bus is deliberately not the write path: it is non-persistent, so a crash between “user disabled” and “event consumed” would lose exactly the record an audit log exists to keep.

View events have no transaction to join. They are a plain insert that must never fail the read it describes, so an insert failure is logged loudly and swallowed – the shipped log line is still emitted, and that is the archive.

Actions

Namespaced strings inside the payload, so the set grows without a migration. A client must render an unknown action rather than assume the list is closed.

Action	Notes
auth.login	Snapshots the groups the identity carried. Since membership is never persisted as authorization, this is the only durable record of what access an identity held on a given day. With ldap.authoritative_role_groups on, the snapshot is the narrowed list, and detail.role_groups_removed_by_directory names any role group the claim carried that the directory no longer lists
auth.login_denied	A disabled account attempting to log in, which otherwise vanishes entirely
auth.echo_code_minted, auth.echo_code_used, auth.echo_code_expired	A one-time bootstrap claims echo link: minted by ssoosshd identity echo (actor local-cli, with the OS account and host), opened by a browser (source_ip is the address the server observed), or ended unused (detail.reason: timed_out, replaced or cancelled). The code id and who minted it, never the code and never a claim
auth.userinfo_paused, auth.userinfo_resumed	The server pausing its UserInfo calls after 10 failures in a row, and a probe resuming them. System events, with the endpoint, the failure count and the last error (no token)
cert.requested, cert.approved, cert.denied
cert.code_resolved	A console code typed into the web UI and resolved to its request
cert.claimed	An approval link bound to the first browser that opened it; a later browser is sent to the “link already opened” page
cert.expired	A request that reached its deadline with nobody answering it. A system action, so it carries no actor
cert.sign_failed	A request approved but never signed: the signer reported a failure, or the sweep found it stranded
cert.request_refused_network	A certificate request refused because its source address is outside the type’s allowed_networks (today only cert_options.console.allowed_networks). A system action with no actor: nobody has signed in yet. The detail carries cert_type, source_ip and the reason; source_ip is the address the server observed (through http.trusted_proxies), never one the client supplied. The account and host the caller named are kept as claimed_username and claimed_hostname, never as an actor. One row per refusal, with no de-duplication, so a run of attempts from one place shows every time and source. The caller still gets the same 403, which does not say which networks are allowed, and nothing else is written. See Unauthenticated events and the row cap
cert.issued	Shipped log only. The UI already has certificate history from the certificates table, so a table copy would be duplication; the archive line is the row an incident reviewer joins against target-host sshd logs
enrollment.code_created, .redeemed, .expired	Never carries the enrollment code: it is a bearer credential, and the never-log-sensitive-data rule covers payloads and log lines alike
enrollment.notification_email_set	Carries both the old and the new address. Redirecting where an enrollment’s notifications go is also the quiet way to stop an account’s holders hearing about their own credential, so “who changed it, and to what” is the question this exists to answer
enrollment.reassigned	No longer emitted. Group ownership removed enrollment transfer; the action stays defined so events recorded before that still read back with a name
user.disabled, user.enabled
user.auto_disabled	A system action, so it carries no actor. Raised by the LDAP sync
user.disable_refused	An admin or SOC analyst tried to disable their own account and the server refused. Actor and target are the same account, the reason is the server’s own text, and source_ip is the address the server observed (through http.trusted_proxies), never one the client supplied. The account is left untouched. Only the self-disable refusal is recorded; other refused admin actions are not
user.role_narrowed_by_directory	A system action, so it carries no actor. With ldap.authoritative_role_groups on, a successful directory read (a login or the sync, named in detail.trigger) stopped listing a role group the user holds through OIDC, named in detail.groups; the role stops counting from the next request. One event per read that changes the rows, not one per request
admin.enrollment_viewed	One event per enrollment code opened. Not shipped-log only, unlike the two below: a code is a bearer credential, and it is one event per credential rather than one per screen
admin.user_viewed, admin.audit_viewed	Shipped log only. An auditor working through the directory generates one per user opened and one per page of the feed, and within a session they outnumber the decisions this log exists to record. They keep their archive line – “who looked at this account” is a real question – and lose the table copy the web UI renders. admin.audit_viewed also wrote a new row on every read of the feed, which shifted the window under the UI’s “load more” while the feed paged by offset
ldap.sync_triggered	An admin running the directory sync by hand, with the counts the pass produced. A dry run records dry_run: true and no change to go with it
ldap.probed	One directory probe, with the filter it sent and how many entries matched. The probe writes nothing, but it makes the server open an outbound connection and read an entry in full, which is worth a record
admin.diagnostics_run	One run of the deployment diagnostics, with the status each of the four checks returned. Like the probe it writes nothing and makes the server dial out, so it is recorded for the same reason
nss.*	The NSS directory: its alerts, fleet key administration, and every change the server makes to the accounts, groups and memberships it serves, listed on the NSS operations page
admin.config_viewed	No longer emitted. The effective-config screen is read-only and is reloaded constantly while an operator works, so the event arrived several times a minute and buried the decisions this log exists to record. The action stays defined so older events still read back with a name

There is no logout event: sessions mostly end by expiry, so an explicit logout carries too little signal to keep.

Source addresses

detail.source_ip is always an address the server observed: the connection’s peer, or a forwarded address only when the peer is in http.trusted_proxies. Never one the client wrote into its request. It is also the one address the source_ip column and the feed’s address filter use, with one meaning on every row: the client the event is about.

Action	source_ip is
cert.requested, cert.claimed, cert.approved, cert.denied, cert.expired, cert.sign_failed, enrollment.code_created	the address the certificate request came from, recorded when it was created. Filtering on it follows one client’s requests from request to outcome
cert.request_refused_network	the refused caller
enrollment.redeemed	the client that retrieved the service certificate
user.disable_refused	the browser that asked
every other action	absent, so the column is empty and no address filter matches the row

Two other addresses appear in some payloads and are deliberately left out of the column. approver_ip, on cert.approved and cert.denied, is the approving browser: a different party, and mixing it in would make one filter answer two questions. remote_host, in the host context, is what the client reported, not an observation. Both stay in the payload and the shipped log.

Rows written before the column existed were backfilled from the payload as their text was written. The recorder has always taken the address from the connection, so that text is normally already canonical; a row whose stored spelling differs (an IPv4-mapped address forwarded by a proxy, say) is not matched by the filter, though its payload is unchanged.

Privileged detail views are audited; list views are not. Auditing list pagination writes a row per page of the user directory and says nothing. If a list query ever needs auditing, record it as one event carrying the search parameters. admin.audit_viewed is one event per visit to the audit feed, not one per event displayed, which settles the recursion question.

The web UI’s audit view does not render admin.user_viewed or admin.audit_viewed at all. The server no longer writes them to the table that view reads, and the view drops any rows recorded before that change, which stay until the retention sweep clears them. Both are in the shipped archive as usual, and that is where a “who looked at this account” question is answered.

Required reasons

A reason is required and server-validated – non-empty after trimming, capped at 1000 characters – on the containment and restorative actions:

• user.disabled – the motivating case. The next person deciding whether to re-enable the account must be able to see why it was disabled.
• user.enabled – “cleared with security, SEC-1234” is as valuable to the person after that one.
• enrollment.expired.

Optional reason fields do not get filled; required ones cost seconds at action time and are the whole point later. The API refuses the action rather than recording one that says nothing, and the web UI keeps the confirm button disabled until a reason is typed.

System-initiated events generate their own reason text, since no human is present to supply one. View events carry none.

The denormalized columns on the user row – disabled_at, disabled_by_user_id, and disabled_reason – stay: they render the directory and the re-enable flow without touching the audit table, and they survive audit pruning. The audit trail is the history; those columns are the current state.

Reading it

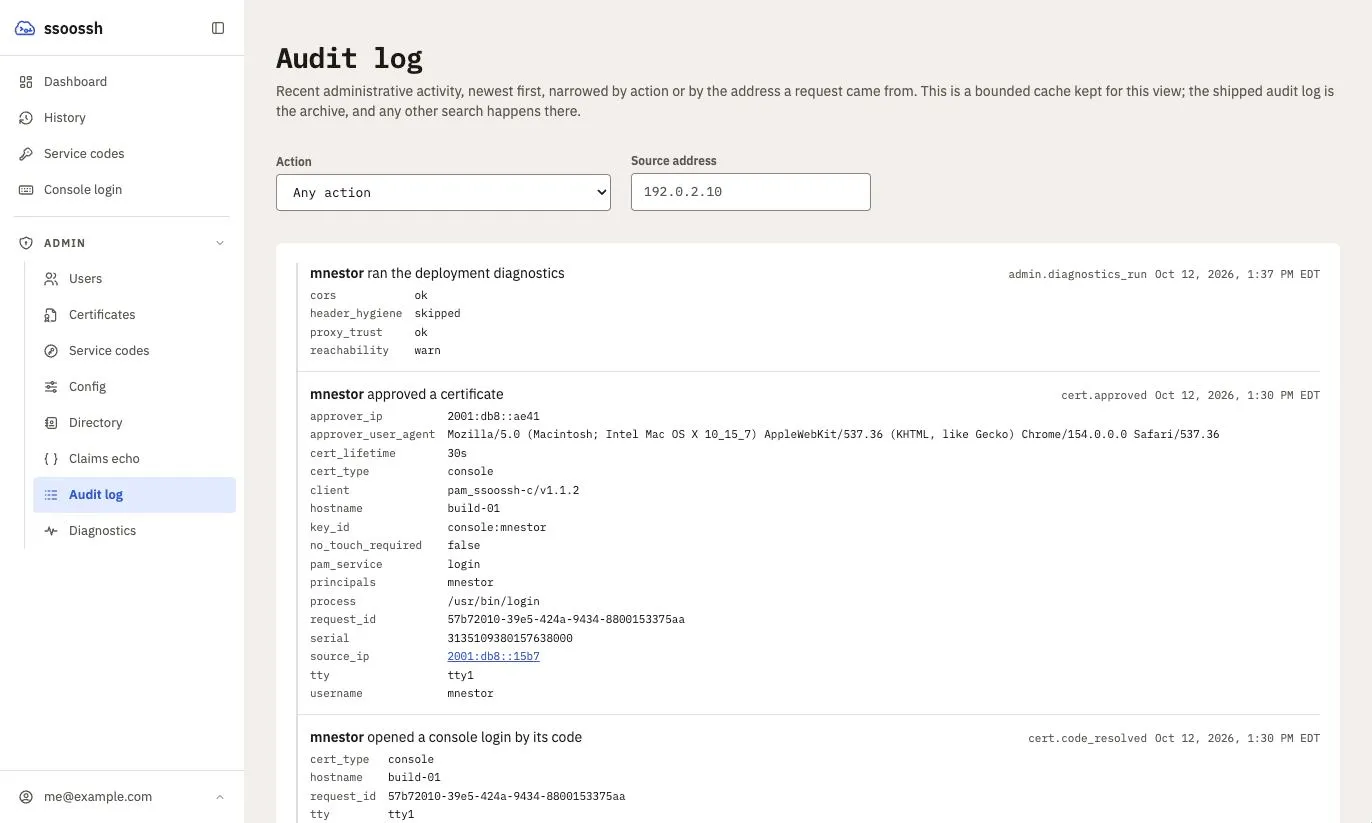

The audit view. Each event names its actor, says what happened in words, and lists the payload underneath; the action string on the right is what the shipped log carries.

Both surfaces sit behind the auditor middleware, which admins and SOC members reach through the role hierarchy (Roles and containment):

Endpoint	What it returns
GET /api/admin/users/:id/audit	one user’s timeline, as actor or target, newest first. This is where the disable reason meets the person deciding whether to re-enable, rendered on the admin user detail page
GET /api/admin/audit	the recent-activity feed, newest first. Optional action (one action from the table above) and source_ip (one IP address; see Source addresses) narrow it, alone or together. Both are exact matches on indexed columns. An unknown action, or a source_ip that is not an IP address, is a 400 rather than an unfiltered page

Both page by cursor, like every admin list and the caller’s own history: limit (25 by default, 100 at most) and after, the next_cursor the previous page returned, which is absent on the last page. A page resumes after that event’s place in the order, so an event recorded while you read neither repeats a row nor pushes one off the next page. An after that names no event on the list (one the retention sweep has since removed, say) is a 400, and so is offset, which these endpoints no longer take.

The audit page in the web UI offers the same two filters, keeps them in its address so a filtered view can be reloaded or shared, and filters to an address when you click one in an event’s fields. Filtering to cert.request_refused_network and then to one address is how a run of attempts from one place reads.

Those two filters are the whole of the table’s search. Anything else – free text, a time range, a field inside an event’s detail, “every action by this subject last quarter” – belongs in the external log system. That is the deliberate split: the shipped archive is where an investigation’s query runs, and the database window is sized to the UI rather than to the investigation.

Existing special-purpose tables

The enrollment retrieval log already existed and already feeds its own UI surface. It stays as it is; its code path additionally emits general audit events. Folding it into the audit table is a possible later cleanup, not a prerequisite.

enrollment_reassignments is the same shape but frozen: nothing writes to it now that ownership cannot be transferred. The rows it holds record transfers that really happened, so the table is kept and still read.
